Clearance

Zmodo 8-Channel 4-Camera Security System with Sony CCD (Open Box)

Condition New; Open Box

Hard Drive 500GB

Quantity Limit 1 per customer

Sold Out

Want more great deals? Sign up for our Daily Digest emails!

Features

The units in this sale are being sold as open box condition. That means that they have been opened due to being a photo sample, a tested good customer return or having damaged packaging. Some non-essential items may be missing from the box. The unit may not be shipped in retail packaging. That is the reason for the reduced sale price and the reduced warranty.

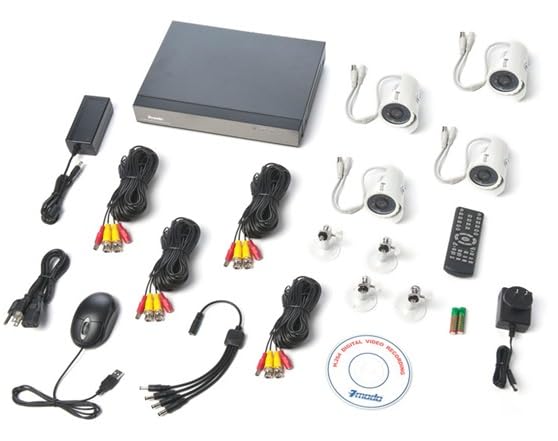

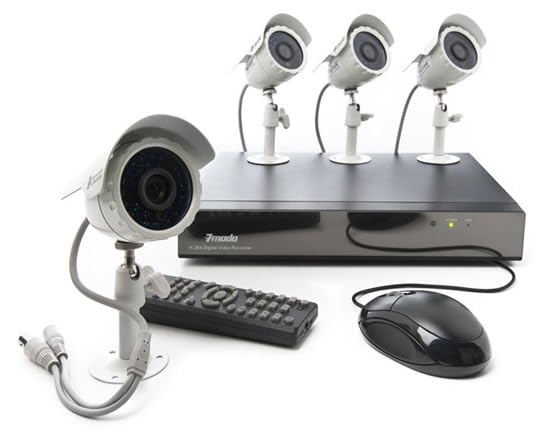

Surveillance kit includes an 8-channel H.264 real-time standalone DVR, four bullet cameras with Sony CCD, four video + power cables and a 12V DC power supply

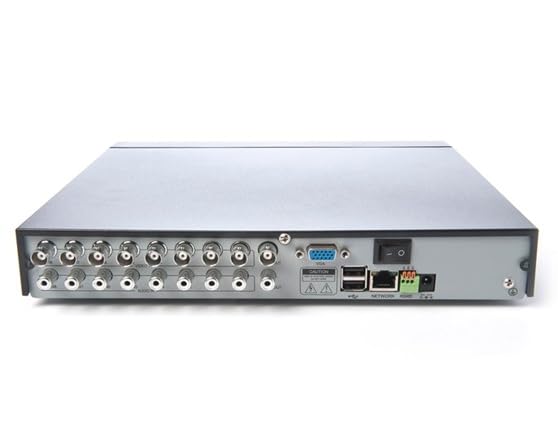

The DVR is an 8-channel, fully integrated, real time, and hardware based standalone digital video recorder
Supports up to 2TB 3.5" SATA hard drive (Choose no hard drive or 500GB hard drive)
A hard drive is not needed when using cameras for surveillance, but is required when using DVR for recording camera images

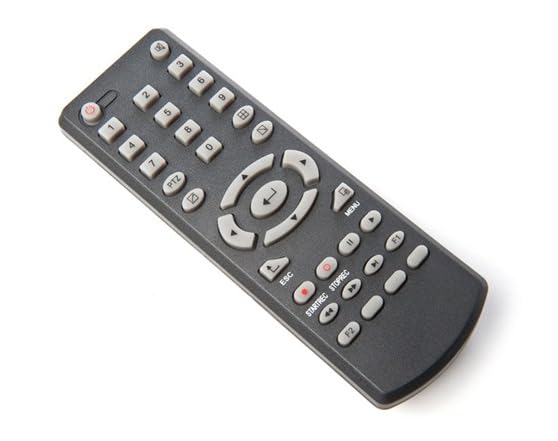

The DVR is based on an embedded Linux operating system and includes a remote control for easy setup and operation
DVR functionality is easily controlled by using either the remote control or the front panel controls on the DVR
DVR supports network access through Ethernet RJ45 interface
Support DVR backup via USB flash drive, removable drive, recorder and network
The DVR also features the most updated 4G/3G mobile support Preview via mobile phone (iPhone, iPad, Android, Blackberry and Windows mobile phones)
Use the 15-pin VGA output to connect a computer monitor (monitor not included)
Playback resolution 704x480
The cameras included in the kit are weatherproof, day/night, security cameras with 65ft night vision
Record Mode options include Continuous, Time Schedule, and Motion Detection
Each camera comes with a 60-foot power and BNC video all-in-one cable
All four cameras are powered by one AC adapter using a 4-way power splitter

DVR:

Embedded Linux OS
Signal System: NTSC / PAL
H.264 Hardware Compression
Video Input / Output: BNC 8/BNC 1
Video Output: VGA
Audio Input / Output: RCA 4/BNC 1
Recording Mode: Continuous/Scheduled/Motion
Display Mode: Each/All/Auto Switch/Hidden
Record: 240 fps
Display: 240 fps
Playback Search: Time & Date, Event List
Network:RJ45 TCP/IP or DDNS
Remote Access: LAN or IE Browser
IR Remote Control
PTZ via RS-485 Port
Support Remote View via 3G Mobile

Camera:

1/4" Sony CCD Image Sensor
420 TV Lines, Horizontal
3.6mm Lens
Signal: NTSC
Night Vision Min. Light: 0 Lux (IR On)
IR Irradiation Distance: up to 65'
Operation Temperature: -25°F~122°F
Weatherproof: Yes
Power: 12V DC
Mount: Wall
Video Connector: BNC
Power Connector: RCA 12V DC

Shipping Note: Shipping to Alaska and Hawaii is not available for this item.

A physical address is required for delivery. No Military or PO Box shipments available

Warranty: 30 Day Woot

Specs

8-Channel H.264 Standalone DVR:
Video Compression:	H.264
Video System:	NTSC / PAL
Operation System:	Linux Based
Video Input / Output:	BNC 8-Channel Input / BNC 1-Channel Output
Other Video Output:	VGA
Audio Input / Output:	RCA 4-Channel Input / BNC 1-Channel Output
Display Frame Rate:	NTSC: 240fps @ D1 / PAL: 200fps @ D1
Display Resolution:	NTSC: D1 (704 x 480) / PAL: D1 (704 x 576)
Recording Frame Rate:	NTSC: 56 fps @ D1 /120 fps @ HD1 / 240 fps @ CIF/PAL: 48 fps @ D1 /100 fps @ HD1/ 200 fps @ CIF
Record Resolution:	Selectable: NTSC: D1(704x480), HD1(704x240), CIF(352x240)/PAL: D1(704x576), HD1(704x288), CIF(352x288)
Record Mode:	Continuous / Time Schedule / Motion Detection
Recording Pack Time:	15/30/45/60mins Selectable
Network Function:	Support Live View with IE & Mobile Phone
Network:	RJ45, 10M/100M
Net Protocol:	TCP/IP, PPPoE, DHCP and DDNS
Remote Access:	LAN or Internet Browsing
PTZ Control:	RS-485
HDD Interface:	SATA, Support between 250GB and 2TB (Choose no hard drive or 500GB hard drive)
USB:	USB Backup/USB 2.0
Remote Control:	IR Remote Control
Power Supply:	DC12V, 3A
Dimensions:	11.4"(W) x 9.1"(D) x 1.65"(H)

Cameras:
Image Sensor:	1/4" Sony Color CCD
TV System:	NTSC / PAL
Effective Pixels:	NTSC: 512 (H) x 492 (V) / PAL: 512 (H) x 582 (V)
Horizontal Resolution:	420 TV-Lines
Lens:	3.6mm
Number of IR LEDs:	24 PCS
Infrared Illumination (Night Vision):	up to 65ft (15~20m)
Minimum Illumination:	0 Lux (IR On)
S/N Ratio:	≥ 48dB
Video Output:	1.0Vp-p, 75ohms (BNC)
Weatherproof:	Yes
Operating Temperature:	-25°F~122°F / -32°C ~50°C
Power:	12V DC
Dimensions:	3.3"(W) x 2.5"(D) x 2.6"(H)
Gross Weight:	0.33 lbs
Material:	Metal Shell

In the box: (Some items may be missing due to this product being open box condition)

ZMD-DD-SAN8 8CH DVR (Choose: No Hard Drive or 500GB Hard Drive)
(4) ZMD-CNR-BBS23NM (CM-N22623BG) Security Cameras
(4) 60' Video + Power All-in-one Cables for Security Cameras
12V 1.5A 4 Port Power Supply for Security Cameras
IR Remote Control
Mouse
User's Manual
