Features
AORUS 400-series motherboards use Hybrid Digital PWM + Lower RDS(on) MOSFETs design to support the 2nd Gen AMD Ryzen™ processors by offering incredible precision in developing power of the motherboard’s most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.
Features:
- AMD B450 AORUS Motherboard with Hybrid Digital PWM, M.2 with Thermal Guard, GIGABYTE Gaming LAN with 25KV ESD Protection, Anti-sulfur Design, CEC 2019 ready, RGB FUSION 2.0
- Supports AMD Ryzen™ 5000 series / Ryzen 5000 G-Series / 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
- HDMI, DVI-D Ports for Multiple Display
- Ultra-Fast NVMe PCIe Gen3 x4 M.2 with Thermal Guard
- High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
- RGB FUSION 2.0 with Multi-Zone LED Light Show Design, Supports Digital LED & RGB LED Strips
- GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
- Smart Fan 5 Features 5 Temperature Sensors and 3 Hybrid Fan Headers with FAN STOP
- APP Center Including EasyTune™ and Cloud Station™ Utilities
- Anti-Sulfur Resistors Design
- Ultra Durable™ 25KV ESD and 15KV Surge LAN Protection
- CEC 2019 Ready, Save Power with a Simple Click
Shipping Note: Shipping to Alaska, Hawaii, P.O. Boxes, and APO addresses is not available for this item.
Warranty: 30 Day Woot
The units in this sale are being sold as open box condition. That means that they have been opened due to being a photo sample, a tested good customer return or having damaged packaging. Some non-essential items may be missing from the box. The unit may not be shipped in retail packaging. That is the reason for the reduced sale price and the reduced warranty.
Specs
SpecificationsCPU Socket | AM4 Socket |
---|---|
CPU Support | Supports AMD Ryzen™ 5000 series processors / Ryzen 5000 G-Series / 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors |
Chipset | AMD B450 |
Form Factor | Micro ATX |
DDR4 Memory Support | 4 x DDR4 DIMM sockets supporting up to 128 GB of system memory |
PCIe x16 Slots | 1 x PCI Express x16 slot, running at x16 (PCIEX16) * Actual support may vary by CPU. * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 1 x PCI Express x16 slot, running at x4 (PCIEX4) 1 x PCI Express x1 slot (The PCIEX4 and PCIEX1 slots conform to PCI Express 2.0 standard.) |
Storage | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 |
Back I/O Ports | 1 x PS/2 keyboard/mouse port 1 x DVI-D port 1 x HDMI port 2 x USB 3.1 Gen 2 Type-A ports (red) 4 x USB 3.1 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 6 x audio jacks |
Item model number | B450 AORUS M |
Manufacturer | GIGABYTE |
Dimensions | 24.4cm x 24.4cm |
Operating System | Support for Windows 10 64-bit Support for Windows 7 64-bit * To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge, Summit Ridge and Bristol Ridge CPU. |
Additional information here.
In the Box:

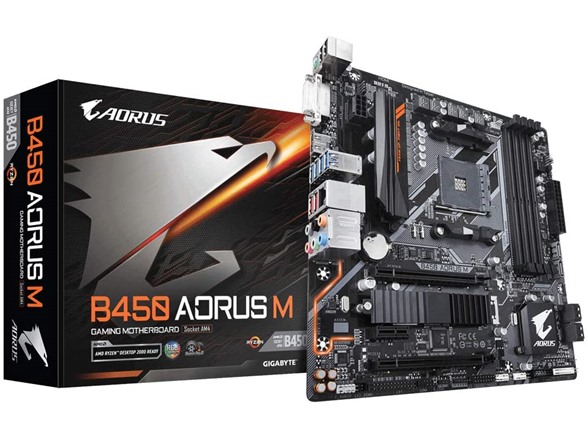

- (1) GIGABYTE B450 AORUS M Motherboard
Specs
SpecificationsCPU Socket | AM4 Socket |
---|---|
CPU Support | Supports AMD Ryzen™ 5000 series processors / Ryzen 5000 G-Series / 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors |
Chipset | AMD B450 |
Form Factor | Micro ATX |
DDR4 Memory Support | 4 x DDR4 DIMM sockets supporting up to 128 GB of system memory |
PCIe x16 Slots | 1 x PCI Express x16 slot, running at x16 (PCIEX16) * Actual support may vary by CPU. * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 1 x PCI Express x16 slot, running at x4 (PCIEX4) 1 x PCI Express x1 slot (The PCIEX4 and PCIEX1 slots conform to PCI Express 2.0 standard.) |
Storage | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 |
Back I/O Ports | 1 x PS/2 keyboard/mouse port 1 x DVI-D port 1 x HDMI port 2 x USB 3.1 Gen 2 Type-A ports (red) 4 x USB 3.1 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 6 x audio jacks |
Item model number | B450 AORUS M |
Manufacturer | GIGABYTE |
Dimensions | 24.4cm x 24.4cm |
Operating System | Support for Windows 10 64-bit Support for Windows 7 64-bit * To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge, Summit Ridge and Bristol Ridge CPU. |
Additional information here.
In the Box:
- (1) GIGABYTE B450 AORUS M Motherboard
