Features
The units in this sale are being sold as open box condition. That means that they have been opened due to being a photo sample, a tested good customer return or having damaged packaging. Some non-essential items may be missing from the box. The unit may not be shipped in retail packaging. That is the reason for the reduced sale price and the reduced warranty.

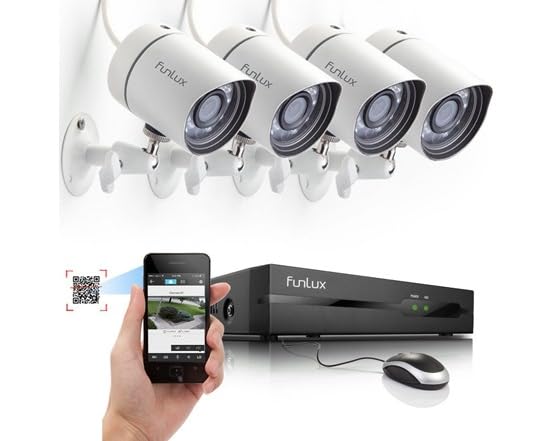

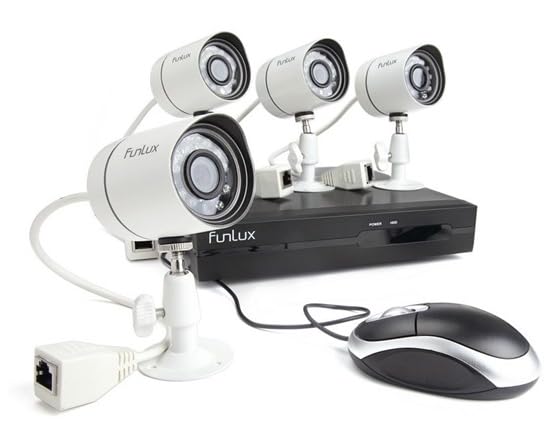

This All-in-one four channel NVR kit allows 4 outdoor 720P cameras to connect and set up in just minutes. You don't need to know deeply about computer or network, this time we've made the setup even simpler. No extra power cables or adapters are needed for the included IP cameras. Just plug one cable for one camera, scan the QR code, you will instantly view on your iOS or Android device.
NVR:
- IP video input : 4CH IP camera inputs
- Display Frame Rate: 100fps@720P
- Recording Frame Rate: 100fps@720P
- One Type Video Out: PC Monitor VGA Output (The VGA Cable is not included)
- Remote Access via Smartphone, Tablet or PC
- Smartphone systems: iOS 5 up, Android 2.3 up
- PC System: Windows XP/ Vista / 7 / 8, IE Internet Explorer
- Power: 19V/ 3A DC
- Image Sensor: 1/4'' Color CMOS
- Image Resolution: 720P(1280×720) , VGA (640×480) , QVGA (320×240)
- Lens: 2.8mm
- Number of IR LEDs: 24
- Night Vision: 65ft (20m)
- Minimum Illumination: 0 Lux (IR On)
- Operation Temperature: 14°F~122°F
- Weatherproof: Yes
- Power: 12V DC
Shipping Note: Shipping to Alaska and Hawaii is not available for this item.
A physical address is required for delivery. No Military or PO Box shipments available
Warranty: 30 Day Woot
Specs
Video Input/ Output | |
---|---|
IP video input | 4 channel IP camera inputs |
VGA output | 1 channel |
Recording resolution | 720P |
Compression | H.264 |
Record rate | 100fps |
Multi screen display | 1024×768@60Hz, 1280×1024@60Hz |
Record Mode | Manual / Time Scheduled / Alarm Triggered / Motion Detect |
Playback | Fast forward / Rewind / Slow Play |
Hard Disk Drive | |
---|---|
Interface type | 1 SATA (3.5") |
Capacity | Up to 4TB |

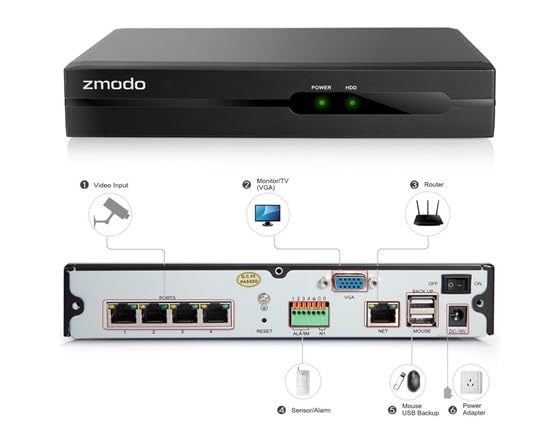

External Interface | |
---|---|
Network interface | 1 RJ45 10M/ 100M self-adaption & 4 independent 10/ 100 Mbps ethernet interfaces |
USB interface | 2 USB 2.0 interfaces |
Alarm inputs/ output | 4 channel sensor inputs / 1 channel alarm output |
General | |
---|---|
Application support | Remote configuration, video browse, local recording, local and remote playback |
Motion detection | Yes |
Protocol support | TCP/IP, UDP, DNS/ DDNS, SMTP, UPNP, DHCP, HTTP, P2P |
Alarm | Support remote notification |
Smart device | iOS 6 up, Android 2.3 up |
Power supply | DC19V, 3A |
sPoE ports | 4 |
Power consumption | <12W (Without hard disks) |
Operating temperature | 32°F~122°F / 0 °C to 50 °C |
Dimensions | 220 × 205 × 40mm (8.6" × 8.1" × 1.65") |
Weight | 1.49lbs (Without hard disks) |
Language | 11 languages (Chinese * English * Czech * Japanese * German * Russian * Spanish * French * Italian * Portuguese * Arabic) |
CS-S1T-S
|
|
---|---|
Camera | |
Image sensor | 720P color sensor |
Min. illumination | 0.1Lux (IR LED On) / F 1.2 |
Shutter speed | Auto |
Lens | 2.8mm |
Angle of view (diagonal) | 81 degree |
Day & night | Electronic (IR-CUT filter with auto switch) |
Compression Standard | |
---|---|
Video compression | H.264 |
Bit rate | 16Kbps~2Mbps |
Dual stream | Yes |
Image | |
---|---|
Image resolution | 720P (1280*720) , VGA (640*480) , QVGA (320*240) |
Frame rate | 25fps |
White balance | Auto |
Backlight balance | Auto |
Image setting | Brightness, contrast, saturation |
Network | |
---|---|
Alarm trigger | Intelligent motion detection |
Alarm action | E-mail alarm, video record |
Network protocols | TCP/IP, UDP, DNS/ DDNS, SMTP, UPNP, DHCP, HTTP & P2P |
ONVIF | ONVIF Ver.2.0 |
Security | User authentication, software encryption |
Interface | |
---|---|
Communication interface | RJ45 10 / 100M self-adaptive |
General | |
---|---|
User management | Multi-lever user management, support up to 16 users |
Weather proof | IP65 |
Operating temperature | −10 °C to 50 °C |
Color / Material | White /Aluminum |
Powered by | simplified Power over Ethernet |
Power consumption | 2W~4W |
IR distance | Night visibility up to 20m (65ft) |
Dimensions | 52 × 52 × 72mm (2.1" × 2.1" × 2.8") |
Weight | 0.44lbs |
PC Monitor | |
---|---|
Windows | XP / Vista / Win7 |
IE | 7.0 / 8.0 / 9.0 / 10.0 / 11.0, Please use IE 7.0 / 8.0 /9.0 for Win 8 |
Mobile Monitor | |
---|---|
APP | Zsight |
Android support | 2.3 up |
iOS support | 6 up |
In the box: (Some items may be missing due to this product being open box condition)
- 1) 4 Channel Security NVR(NS-S41E-S)
- 4) 720P Bullet IP Network Camera(CS-S1T-S)
- 1) 19V 3A Power Adapter
- 1) 1M(3ft) CAT5e Network Cable
- 2) 15M(50ft) Camera Cables
- 2) 25M(80ft) Camera Cables
- 1) USB Mouse
- 1) Quick User Guide
Specs
Video Input/ Output | |
---|---|
IP video input | 4 channel IP camera inputs |
VGA output | 1 channel |
Recording resolution | 720P |
Compression | H.264 |
Record rate | 100fps |
Multi screen display | 1024×768@60Hz, 1280×1024@60Hz |
Record Mode | Manual / Time Scheduled / Alarm Triggered / Motion Detect |
Playback | Fast forward / Rewind / Slow Play |
Hard Disk Drive | |
---|---|
Interface type | 1 SATA (3.5") |
Capacity | Up to 4TB |
External Interface | |
---|---|
Network interface | 1 RJ45 10M/ 100M self-adaption & 4 independent 10/ 100 Mbps ethernet interfaces |
USB interface | 2 USB 2.0 interfaces |
Alarm inputs/ output | 4 channel sensor inputs / 1 channel alarm output |
General | |
---|---|
Application support | Remote configuration, video browse, local recording, local and remote playback |
Motion detection | Yes |
Protocol support | TCP/IP, UDP, DNS/ DDNS, SMTP, UPNP, DHCP, HTTP, P2P |
Alarm | Support remote notification |
Smart device | iOS 6 up, Android 2.3 up |
Power supply | DC19V, 3A |
sPoE ports | 4 |
Power consumption | <12W (Without hard disks) |
Operating temperature | 32°F~122°F / 0 °C to 50 °C |
Dimensions | 220 × 205 × 40mm (8.6" × 8.1" × 1.65") |
Weight | 1.49lbs (Without hard disks) |
Language | 11 languages (Chinese * English * Czech * Japanese * German * Russian * Spanish * French * Italian * Portuguese * Arabic) |
CS-S1T-S
|
|
---|---|
Camera | |
Image sensor | 720P color sensor |
Min. illumination | 0.1Lux (IR LED On) / F 1.2 |
Shutter speed | Auto |
Lens | 2.8mm |
Angle of view (diagonal) | 81 degree |
Day & night | Electronic (IR-CUT filter with auto switch) |
Compression Standard | |
---|---|
Video compression | H.264 |
Bit rate | 16Kbps~2Mbps |
Dual stream | Yes |
Image | |
---|---|
Image resolution | 720P (1280*720) , VGA (640*480) , QVGA (320*240) |
Frame rate | 25fps |
White balance | Auto |
Backlight balance | Auto |
Image setting | Brightness, contrast, saturation |
Network | |
---|---|
Alarm trigger | Intelligent motion detection |
Alarm action | E-mail alarm, video record |
Network protocols | TCP/IP, UDP, DNS/ DDNS, SMTP, UPNP, DHCP, HTTP & P2P |
ONVIF | ONVIF Ver.2.0 |
Security | User authentication, software encryption |
Interface | |
---|---|
Communication interface | RJ45 10 / 100M self-adaptive |
General | |
---|---|
User management | Multi-lever user management, support up to 16 users |
Weather proof | IP65 |
Operating temperature | −10 °C to 50 °C |
Color / Material | White /Aluminum |
Powered by | simplified Power over Ethernet |
Power consumption | 2W~4W |
IR distance | Night visibility up to 20m (65ft) |
Dimensions | 52 × 52 × 72mm (2.1" × 2.1" × 2.8") |
Weight | 0.44lbs |
PC Monitor | |
---|---|
Windows | XP / Vista / Win7 |
IE | 7.0 / 8.0 / 9.0 / 10.0 / 11.0, Please use IE 7.0 / 8.0 /9.0 for Win 8 |
Mobile Monitor | |
---|---|
APP | Zsight |
Android support | 2.3 up |
iOS support | 6 up |
In the box: (Some items may be missing due to this product being open box condition)
- 1) 4 Channel Security NVR(NS-S41E-S)
- 4) 720P Bullet IP Network Camera(CS-S1T-S)
- 1) 19V 3A Power Adapter
- 1) 1M(3ft) CAT5e Network Cable
- 2) 15M(50ft) Camera Cables
- 2) 25M(80ft) Camera Cables
- 1) USB Mouse
- 1) Quick User Guide
