Features

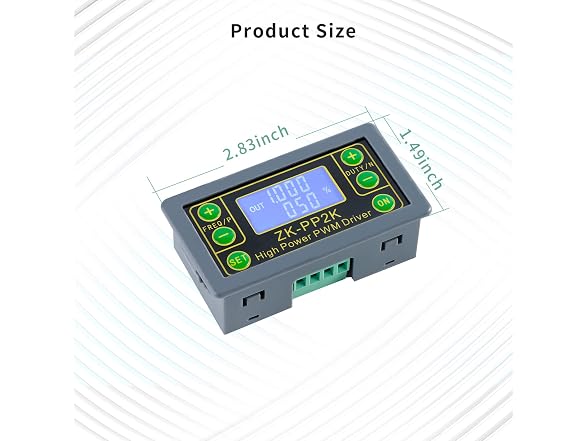

♥Product Specifications: 1. Working voltage: 3.3~30V (note that the positive and negative poles should not be reversed, otherwise it may burn) 2. Frequency range: 1Hz~150KHz, the accuracy is about 2%. Motor speed regulation generally chooses 20KHZ 3. Duty cycle range: 0-100%, 1% step 4. Number of pulses: 1-9999, or infinite (display '---' means infinite) 5. Delay output time: 0.000s-9999s, the minimum can be set to 1ms 6. Positive and negative pulse width length: 0.000s-9999s, the minimum can be set to 1ms 7. Output load capacity: less than 8A (MOS switch tube) 8. Output amplitude: the amplitude is equal to the supply voltage (OUT+ and V+ are directly connected inside the module) 9. Product size: 79mm*43mm*30mm 10. Product weight: 42g ♥Various practical scenarios: 1. LED brightness adjustment, frequency, and duty cycle can be adjusted 2. Motor speed adjustment, frequency, and duty cycle can be adjusted 3. Drive solenoid valve to pull in and release, automatic cycle, delay output, cycle times (or infinite cycle) can be set. 4. Control the turn-on and turn-off of equipment, do switch fatigue tests, voltage sag tests, etc., to verify the reliability of user equipment. 5. Delay start of the load, the delay time can be set, and it will always be turned on or intermittently work after the delay.

★ZK-PP2K PWM/pulse signal generator product introduction: This series of products are PWM and pulse signal generators. There are PWM mode and pulse mode. Only one mode can be used at a time, but the two modes can be switched at any time.
★Product Specifications: 1.Working voltage:3.3~30V (note that the positive and negative poles should not be reversed, otherwise it may burn) 2.Frequency range:1Hz~150KHz, the accuracy is about 2%. Motor speed regulation generally chooses 20KHZ 3.Duty cycle range:0-100%,1% step 4.Number of pulses:1-9999, or infinite (display '---' means infinite) 5.Delay output time:0.000s-9999s, the minimum can be set to 1ms 6.Positive and negative pulse width length:0.000s-9999s, the minimum can be set to 1ms

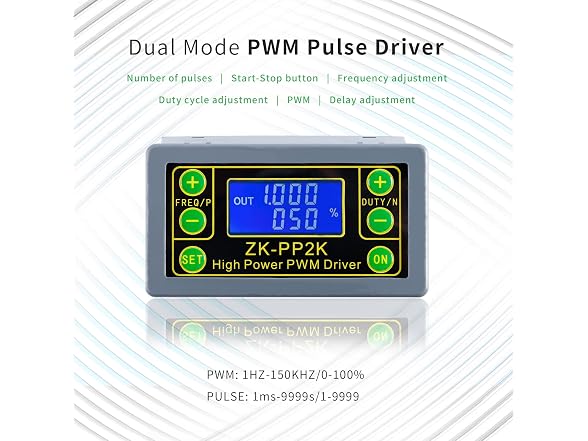

★Product Highlights: 1. It can directly drive loads such as LEDs, motors, solenoid valves, etc. 2. Two modes can be selected: PWM mode - one frequency (continuous), duty cycle. Note that switching times cannot be set in this mode, always, cyclically on and off; PULSE pulse mode 1 - positive pulse width time, negative pulse width time, power-on delay start time, and switching times are adjustable. 3. With the start and stop button, 4. Wide voltage input 3.3-30V,5.08mm terminal wiring

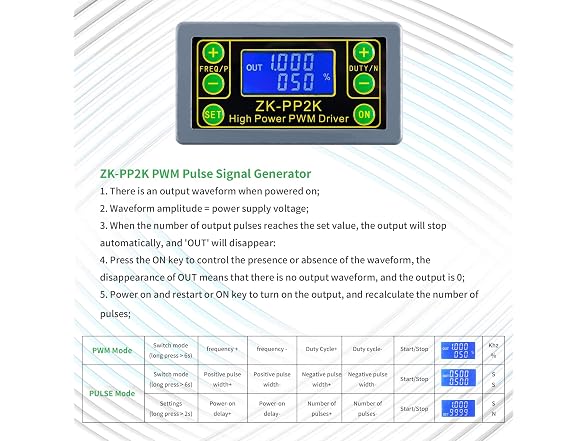

★Key operation instructions: 1. MOS switch type output, pay attention to no waveform, can directly drive the motor solenoid valve, etc. 2. When the number of switches reaches the set value, the output will be automatically stopped, and 'OUT' will disappear. 3. Press the ON key to control the presence or absence of the switch, and the disappearance of OUT means the output is turned off. 4. Power on and restart or ON key to turn on the output, and recalculate the switching times.

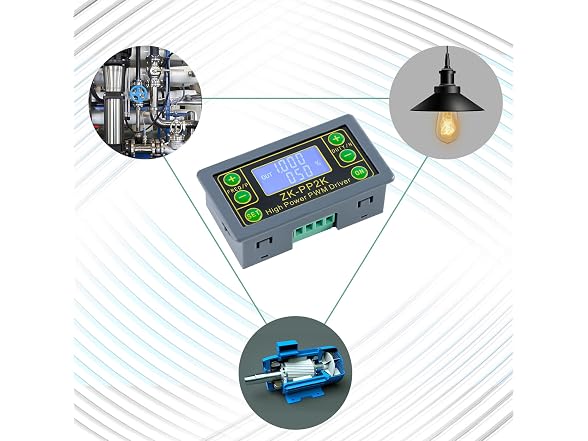

★Application scenarios: 1. PWM signal generator, square wave rectangular wave signal generator. 2. Used to generate square wave and rectangular wave signal to control DC motor or stepper motor driver; used for servo motor, stepper motor, substitute PLC pulse, etc. 3. ZK-PP2K can be matched with the driver to realize dimming, speed regulation, control solenoid valve, etc. ZK-PP2K can directly drive loads such as electric light motor solenoid valve.

Specs

In the Box:

(1) EC Buying Function SignalGenerator
