Baofeng UV-5RTP Two-Way Radio Transceivers (2 Pack) (Open Box)

Open Box
Limit 1 per customer

Features

The units in this sale are being sold as open box condition. That means that they have been opened due to being a photo sample, a tested good customer return or having damaged packaging. Some non-essential items may be missing from the box. The unit may not be shipped in retail packaging. That is the reason for the reduced sale price and the reduced warranty.

Disclaimer: No License is required to purchase this radio, nor to Monitor (listen) to the many Amateur (Ham) Radio frequencies. However, an FCC License is required to Transmit (Talk) on Amateur Radio Frequencies in the USA. Please visit http://wireless.fcc.gov/services/amateur/licensing to learn more.

The Baofeng UV-5RTP is the upgraded version of UV-5R with Tri-Power 8/4/1W

  • Optimal Modulation of TX/RX Power Tube, True 8W Output Power, Longer Effective Talking Range.
  • Upgrade the frame material. Metallic, more durable and more fashionable.
  • With full high two colors LED definition display, the screen exquisite clarity.

Functions:

  • Channel Step: 2.5/5/6.25/10/12.5/25KHz.
  • Dual-Band Display, Dual Freq. Display, Dual-Standby.
  • Output Power: 8/ 4 /1Watts Triple Power.
  • 128 Channels 50 CTCSS and 104 DCS.
  • Built-in VOX Function.
  • 1750Hz Brust Tone.
  • LED Flashlight, Large LCD Display.
  • Hight /Low RF Power Switchable.
  • 25KHz/12.5KHz Switchable.
  • Emergency Alert, Low Battery Alert, Battery Saver.
  • Time-out Timer, Keypad Lock, Monitor Channel.
  • roger set.

Shipping Note: Shipping to Alaska and Hawaii is not available for this item

A physical address is required for delivery. No Military or PO Box shipments available

Warranty: 30 Day Woot



Specs

Actual Measurement & Comparison

*In 136-174/400-470 Mhz the radio can achieve tri-power(especially for high power level), but if you want the radio used in above 500Mhz, the maximum output power would be about 6.6w. The frequncy of the UV-5RTP radio has been set as 140-150/430-440MHz when it was manufactured. In order to use the 136-174/400-520MHz, customers need to do the factory reset first. Press the Menu button, type '40', and then the radio will be reset.Then, please use the the Baofeng official software (Not CHIRP) for programming.

On HAM Radio usage and licensing.

Do I need a license to buy or listen to an Amateur radio?

  • A license is not required to purchase the equipment, or even to listen (Monitor) to HAM radio frequencies.

Do I need a license to transmit on HAM radio frequencies?

  • Yes, an FCC license is required to transmit on certain frequencies that the radio is capable of transmitting on in the USA.

What type of HAM radio licenses are there, and what is required to get a HAM radio license?
There are currently 3 levels of Amateur licenses.

  • The Entry level or "Technician Class" License simply requires passing a very basic and simple 35 questions multiple choice test.
  • The upper level "General" & "Extra" class licenses require additional multiple-choice written tests each

Where can I get more information to get licensed?

  • This website from The national association for amateur radio should give you an overview and provide some helpful information in getting you HAM radio license.

    http://www.arrl.org/getting-licensed

General:
  • Channel No.: 128.
  • Frequency Stability: ±2.5ppm.
  • Antenna: High gain Dual-Band Antenna.
  • Antenna Impedance: 50Ω.
  • Operating Voltage: DC 7.4V.
  • Mode of operation: Simple or semi-duplex.
  • Dimension(W x H x D): 100 x 52 x 32 mm.
  • Weight: 250g. (including battery, antenna)

 Transmitter Specs:

  • Modulation Mode: 16kΦF3E / 11kΦF3E.
  • Maximum deviation:<5kHz(Wide) / <2.5kHz.(Narrow)
  • Spurious Radiation:<7μW.
  • Adjacent Ch. power: ≤-65dB(Wide) / ≤-60dB.(Narrow)
  • Pre-emphasis characteristics: 6dB.
  • Current: ≤1.6A.(5W)
  • CTCSS/DCS deviation: 0.5±0.1kHz(Wide) / 0.3±0.1kHz.(Narrow)
  • Intermediation sensitivity: 8-12mv.
  • Intermediation distortion:<10.
  • Output power: 8W / 4W / 1W. (Max 8W)

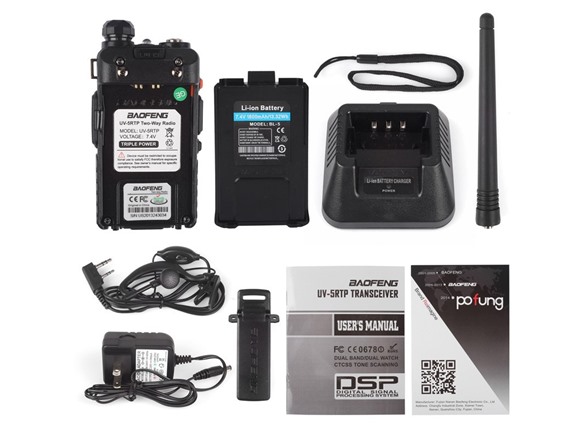

In the Box: (Some items may be missing due to this product being open box condition)

  • (2) Baofeng UV-5RTP Radio
  • (2) 7.4V 1800mAh Li- ion Battery
  • (2) Booster Antenna
  • (2) Earphone Mic/Headset
  • (2) Belt Clip
  • (2) Hand Strap
  • (2) Manual
  • (2) Adapter
  • (2) Desktop Charger
  • (1) Programming Cable

Specs

Actual Measurement & Comparison

*In 136-174/400-470 Mhz the radio can achieve tri-power(especially for high power level), but if you want the radio used in above 500Mhz, the maximum output power would be about 6.6w. The frequncy of the UV-5RTP radio has been set as 140-150/430-440MHz when it was manufactured. In order to use the 136-174/400-520MHz, customers need to do the factory reset first. Press the Menu button, type '40', and then the radio will be reset.Then, please use the the Baofeng official software (Not CHIRP) for programming.

On HAM Radio usage and licensing.

Do I need a license to buy or listen to an Amateur radio?

  • A license is not required to purchase the equipment, or even to listen (Monitor) to HAM radio frequencies.

Do I need a license to transmit on HAM radio frequencies?

  • Yes, an FCC license is required to transmit on certain frequencies that the radio is capable of transmitting on in the USA.

What type of HAM radio licenses are there, and what is required to get a HAM radio license?
There are currently 3 levels of Amateur licenses.

  • The Entry level or "Technician Class" License simply requires passing a very basic and simple 35 questions multiple choice test.
  • The upper level "General" & "Extra" class licenses require additional multiple-choice written tests each

Where can I get more information to get licensed?

  • This website from The national association for amateur radio should give you an overview and provide some helpful information in getting you HAM radio license.

    http://www.arrl.org/getting-licensed

General:
  • Channel No.: 128.
  • Frequency Stability: ±2.5ppm.
  • Antenna: High gain Dual-Band Antenna.
  • Antenna Impedance: 50Ω.
  • Operating Voltage: DC 7.4V.
  • Mode of operation: Simple or semi-duplex.
  • Dimension(W x H x D): 100 x 52 x 32 mm.
  • Weight: 250g. (including battery, antenna)

 Transmitter Specs:

  • Modulation Mode: 16kΦF3E / 11kΦF3E.
  • Maximum deviation:<5kHz(Wide) / <2.5kHz.(Narrow)
  • Spurious Radiation:<7μW.
  • Adjacent Ch. power: ≤-65dB(Wide) / ≤-60dB.(Narrow)
  • Pre-emphasis characteristics: 6dB.
  • Current: ≤1.6A.(5W)
  • CTCSS/DCS deviation: 0.5±0.1kHz(Wide) / 0.3±0.1kHz.(Narrow)
  • Intermediation sensitivity: 8-12mv.
  • Intermediation distortion:<10.
  • Output power: 8W / 4W / 1W. (Max 8W)

In the Box: (Some items may be missing due to this product being open box condition)

  • (2) Baofeng UV-5RTP Radio
  • (2) 7.4V 1800mAh Li- ion Battery
  • (2) Booster Antenna
  • (2) Earphone Mic/Headset
  • (2) Belt Clip
  • (2) Hand Strap
  • (2) Manual
  • (2) Adapter
  • (2) Desktop Charger
  • (1) Programming Cable
